DESCRIPTION

Basic Info.

Model NO.	nylon filter membrane
Diameter	13/25/35/47/50/60/70/80/90/100/142/150
Usage	Air Filter, Food and Beverage, Medicine etc
pH	6-13
Certification	SGS and ISO9001
Transport Package	Carton Packing
Specification	width have 280/315/317/320/326/420mm
Trademark	QingFeng, OEM
Origin	China
HS Code	8421999090
Production Capacity	200000square Meter/Year

Product Description

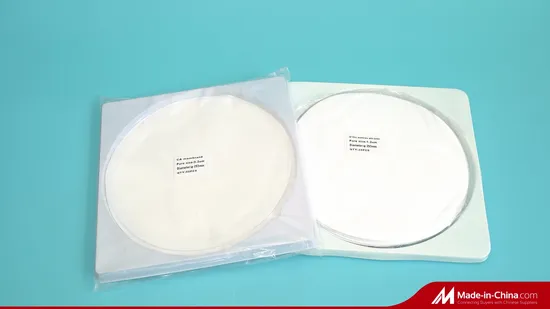

https://qingfengfilter.en.made-in-china.com/product-list-1.html Nylon Membrane (N6/N66)
Features and Benefits

1.With imported non-textile supporting bolster, good resilience, torn-u tolerance and durability2.Intense filtration and high filtration quality3.Naturally hydrophilic. No need to use humectant, which prevents the filtrate from being contaminated.4.Applies to water solvent and most organic solvent, especially to the filtration of alkalinity and alcohol solvent.5.Nylon66 Membrane has higher mechanical strength, higher temperature resistance, better low temperature resistance.

Application:

1.Purification and filtration of liquid and removal of particles. 2.Filtration of various solvent and medication solvent.3.Filtration of corrosion- resistance4.Ultimate filtration of ink
Sterilization: Non-Sterilization packaging; High temperature and high pressure sterilization 121 ° C for 30 minutes,
Specifications:1.Pore size(um): 0.1, 0.22, 0.45, 0.65, 0.8, 1.0, 3.0, 5.0, 10.02.Configuration size (mm): Roundel: Φ13,Φ25,Φ35,Φ47,Φ50,Φ60,Φ70,Φ80,Φ90,Φ100,Φ142,Φ150,Φ200,Φ300,Φ400 Rectangle: custom-built, maximum size 400*400mm/315mm*640mm. Rolling film: length for your choice,Width : 280/305/317/320/326/420mm

Name of filter membrane	material	pore size(um)	Bubble point(Mpa)	Water flow rate(ml/min.cm2)	Thickness(um)	PH value	sterilization	Normal operating temperature
Nylon	N6/N66	0.22	≥0.3	≥7.5	90±15	6--13	(121°C/30min)	≤60ºC(Max operating temperature 80ºC)
		0.45	≥0.2	≥14
		0.65	≥0.14	≥46
		1.00	≥0.08	≥81
		3.00	≥0.05	≥162

microscopical picture of Nylon membarne

Certificates:
Exhibition

Warehouse

Shipping
Delivery time:
1.If this kind of products is in stock, the product will be sent for you 1-3 days after payment.2.If this kind of products is not in stock, the products will take about 7-15days to produce.
About us:
JiAn city QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, we are specialize in manufacture of Filter Membranes,filter cartridges,syringe filter and filter elements since 2006 year.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
Contact us:

JiAn City qingfeng filter Qingfeng Filter Equipment Co., Ltd
Address:	New Industrial Area,Qingyuan District, Jian City, Jiangxi Province,China
Fax:	0796-8106818
